35+ Piping Reducer Design. piping design. sometimes refers to piping design, the detailed specification of the physical piping layout within a process plant or commercial building. In earlier days, this was sometimes called drafting, technical drawing, engineering drawing, and design, but is today commonly performed by piping design designers that have learned to use automated computer-aided drawing or computer-aided design (CAD) software 35+ Piping Reducer Design the following

ASME BPE Reducers Pharmaceutical Biotech Central Sumber : www.csidesigns.com

PRACTICAL PIPING COURSE Engineer
PRACTICAL PIPING COURSE OUTLINE 1 Introduction 1 1 Definition of Piping 3 1 2 Piping Nomenclature Components 4 Components include pipe tubing fittings flanges gaskets bolting valves and devices such as expansion joints flexible joints piping and fittings Design Construction and Installation of Boilers and Pressure

plumbing pipes and fittings Google Search Odds and Sumber : www.pinterest.com

Piping Reducer EnggCyclopedia
Codes and standards for piping reducers and expanders The design manufacturing installation and maintenance of different piping fittings is governed by ASME ANSI standards For piping reducers you can refer to the following 2 standards B16 1 2005 Gray Iron Pipe Flanges and Flanged Fittings Classes 25 125 and 250

ASME BPE Ferrules Pharmaceutical and Biotech Central Sumber : www.csidesigns.com

Reducers used in Piping Industry A short literature
15 08 2020 Here comes the importance of a special pipe fitting called Reducers Reducers are most extensively used in piping industry to reduce or expand the straight part of run pipe Basically reducers are available in two styles Concentric reducers and Eccentric reducers Concentric Reducers As

Pipe Fittings Design Content Sumber : www.designcontent.com.au

Pumps Suction Piping Eccentric Reducers Straight
20 09 2020 A reducer fitting is typically used in pump suction piping to reduce the size of the suction pipe to match the size of the pump suction end flange A reducer is a constriction and requires careful design to avoid both turbulence and the creation of pockets where air or vapour might collect

Stress Analysis of Jacketed Piping System using Caesar II Sumber : www.whatispiping.com

Reducer Piping Study
Pipe reducer is a kind of pipe fitting that joins two pipes of different diameter The pipe reducers are available in a range of materials depending on the end use of the products and these fittings are manufactured in inch and metric size

SS Eccentric Reducer Stainless Steel Eccentric Reducer Sumber : www.gtfittings.in

piping designer com
A flow line or gathering line is a pipe that that carries oil gas or water from the wellhead to a well test manifold or production facilities Read More Pipe Rack Pipe Racks are a crucial component in plant design that need to be properly sized and designed during a project Read More Centrifugal Pumps

Pipe Fittings Design Content Sumber : www.designcontent.com.au

Reducer Fittings Decrease Pipe Size to Avoid Failure
28 08 2020 Part of the pump inlet piping design includes the selection of reducer fitting type A reducer fitting is typically used in pump station pipe work to reduce the size of the suction pipe to match the size of the pump suction end flange Reducer fittings used in pump inlet pipe work are divided into two types concentric and eccentric reducers

Elbow Pipe Fittings Designs 2D 3D Sumber : industrialcadtutorials.com

Charlotte Pipe
Cast Iron PVC ABS and CPVC pipe and fittings for plumbing and industrial systems About Charlotte Pipe History Why We re Different Made In The USA Plant Locations Newsroom About Us Newsroom Overview Press Releases In The News Videos Logo Requests Main Menu

Flue Pipe Reducer Heat Design Sumber : www.heatdesign.ie

ASME B16 9 Reducer Manufacturers Marcel Piping
Stockholder Of Butt Weld Pipe Reducer Buttweld Concentric Reducer Fittings Eccentric Buttweld Reducers Delaer Our offered ANSI B16 9 Concentric Reducers a type of Pipe Reducer that fastens pipe sections on the same axis and is conical in shape These Reducer pipe fittings have varying ends and can join unequal diameter pipes on different pipe sections falling on the same axis

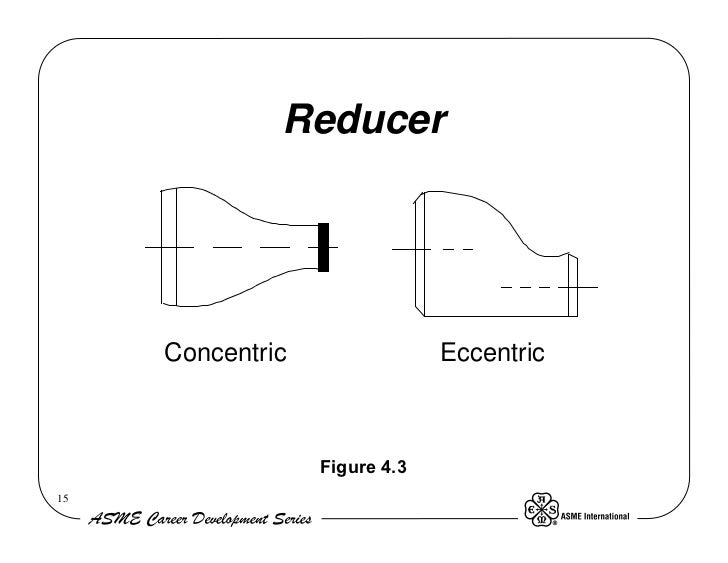

Simple Piping design Sumber : www.slideshare.net

Types of Pipe Fittings Used in Piping A Complete Guide
Pipe Reducers A pipe reducer changes the size of the pipe There are two types of reducer used in piping Concentric Eccentric Concentric Pipe Reducer or Conical Reducer In Concentric reducer which is also known as a conical reducer the center of both the ends is on the same axis It maintains the centerline elevation of the pipeline
